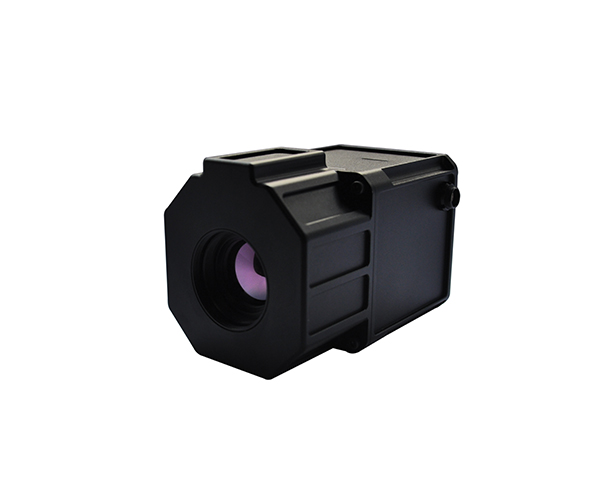

Núcleo de Imágenes Térmicas para Monitoreo En Línea TI65
Número de producto: TI65 640 x 480 píxeles
Categoria del producto: Sistema de imagen térmica de UAV - Monitoreo en línea cámara de imagen térmica

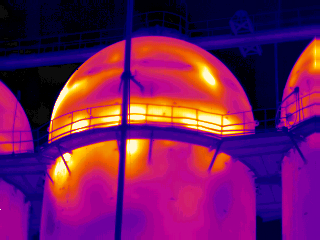

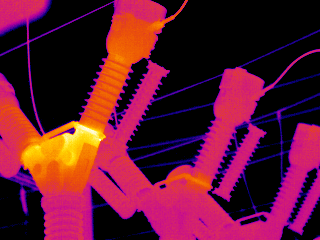

TI35|TI65 are with advanced thermal imaging technologies and are our innovative thermal imaging products for online monitoring system.They are suitable for long-distance monitoring for machines, electrical equipment and flammable materials; they can detect potential dangers in time so as to ensure the safety in production.
Principales Características◆ 384×288|640×480, 17μm uncooled FPA detector
◆ Multiple motorized lenses, supporting auto focusing
◆ Auto tracking of hot spots and showing the temperature values
◆ Thermal images, temperature and temperature data flows are saved
◆ 100M network transmission temperature data
◆ Compact structure with weight of 420g
◆ Professional software for free
|
Detector Data |
||
| Type | Uncooled FPA | |
| IR resolution | 640×480 | |
| Pixel pitch | 17μm | |
| Spectral range | 7.5～14μm | |
| NETD/Sensitivity | 65mK | |
|
Lens |
||
| FOV/Minimum imaging distance | 24°×18°/30cm | |
| IFOV | 0.65mrad | |
| Focus | Auto/Motor | |
|
Image Performance |
||
| Image enhancement | IVE image enhancement algorithm | |
| Frequency | 50Hz/60Hz | |
| Digital zoom | 2X、4X | |
| Color palletes | 10 palletes(including iron, rainbow, white hot and black hot etc.) | |
|
Measurement |
||
| Temperature range | -20℃～+200℃(can be extended to 600℃) | |
| Temperature accuracy | ±2℃/±2%(reading) | |
| Highest temperature tracking | Display the location and value of the highest temperature point | |
| Measurement correction | Auto | |
| Emissivity correction | Adjustable from 0.01 to 1.0 or selected from list of materials | |
| Background temperature correction | Auto | |
| Atmospheric transmissivity correction | Auto | |
| Fliter or window transmittance | Auto | |
| Setting function | Date/time, temperature unit ℃/℉/K, language | |
|
Data Storage |
||
| Temperature data | Customized UDS, use IRSee to analyze | |
| Temperature data flow | Customized UTD, use IRSee to playback, freezable、loop、image processed when playing | |
| Image format | JPG format | |
| Video format | AVI format, H.264 compression | |
| SD card | 32G high speed TF card | |
| Storage control | Serial port command, level trigger or key trigger is optional | |
| Report | Word format, customized format function | |
|
Interfaces |
||
| Internet interface | 100M Ethernet, RJ45, temperature data transmission | |
| Power interface | Yes | |
| Video output | CVBS | |
| Control port | RS232 | |
| Installation interface | UNC 1/4”-20 standard interface, M3 treaded joint | |
|
Power System |
||
| DC supply | DC: 12V | |
| Power consumption | <3.6W | |
|
Environment Parameters |
||
| Operation temperature range | -30℃～+60℃ | |
| Storage temperature range | -40℃～+70℃ | |
| Humidity | ≤95%(Non-condense) | |
| EMC | CE/FCC | |
| Vibration | 2G(IEC60068-2-6) | |
| Shock | 25G(IEC60068-2-29) | |
| Encapsulation | IP54(IEC60529) | |
|
Physical Data |
||
| Size(L×W×H) | 105mm×65mm×72mm | |
| Weight | ≤420g(with 25mm athermal lens) | |
|
Packing |
||
| Standard | Thermal imaging camera with 25mm athermal lens, intergation cable, software CD, warranty card, certificate, calibration book, transport case | |
