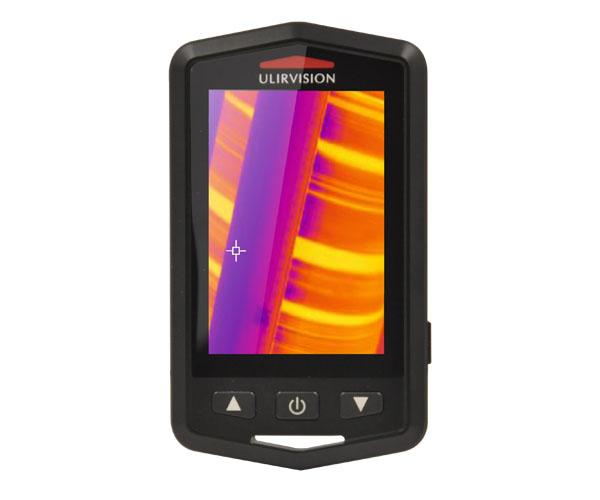

Pocket Thermal Camera T2

Número de producto: T2 80×60 pixels

Categoria del producto: Cámara de imagen térmica - Eléctrico y Industrial

+86 (0)571 8720 9887 +86 (0)571 8512 5358 overseas@ulirvision.com evaxaiohz

T2 is a high cost-effective hand-held thermal camera for beginners without any professional training. It is convenient to carry and can be put into the pocket, also it is quick to start and supports various measurement methods.It can be used in temperature measurement area such as electric industry, mechanical inspection, etc.

Principales Características

◆ 3.5” screen, auto rotation
◆ Small volume
◆ Quick start, measuring at any time
◆ Various measurement methods
◆ 3 button keyboard, beginner friendly
◆ 50° to view, easy to discover problems
◆ USB interface to charge and transmit data

Item

T2

Detector Data

Type Uncooled FPA
IR resolution 80×60
Pixel pitch 17μm
Spectral range 7.5~14μm
NETD/Sensitivity <50mK

Lens Data

FOV 50°× 37.5°

Image performance

Display 3.5” 480×320
Frequency 9Hz
Focus mode Fixed
Color palettes Iron、rainbow and white hot

Measurement

Temperature range -20℃~+150℃
Measurement accuracy ±2℃/±2%
Emission correction Adjustable from 0 to 0.95, or selected from list of materials
D:S 15:1
Measurement modes Spot(center) mode, capture max./min./avg.temperature automatically

Image storage

Storage capacity 800
Storage format JPG

Interface

Power interface Yes
Data transmission USB3.0 Type-C

Power System

Battery type Rechargeable Li-ion battery
Operating time >4h
Charging type USB
External power DC: 5V

Environmental Parameters

Operating temperature range 0℃~+45℃
Storage temperature range -20℃~+55℃
Encapsulation IP54

Physical Data

Size 125mm×72mm×16mm
Weight 173g

Others

Sensor Direction sensor
Standard packing Pocket thermal camera, power adapter, USB Type-C cable, user manual, warranty card, certification



El video de la cámara de imagen térmica
