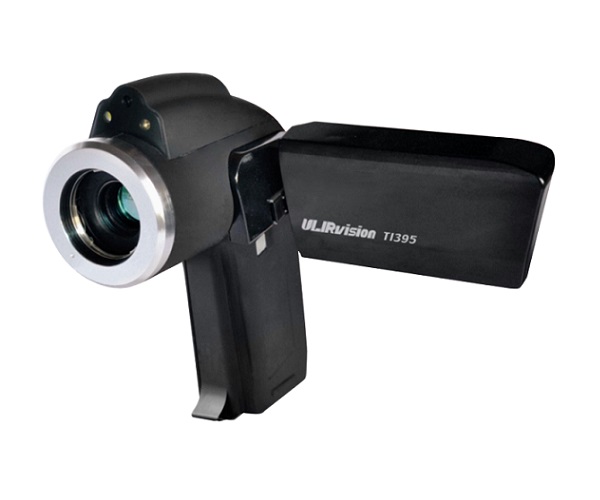

Cámara de imagen térmica de TI395

Número de producto: TI395 384 x 288 píxeles

Categoria del producto: Cámara de imagen térmica - Eléctrico y Industrial

Descargar PDF Enviar esta página Envía tu mensaje

+86 (0)571 8720 9887 +86 (0)571 8512 5358 overseas@ulirvision.com evaxaiohz

TI175|TI395 are affordable, easy-to-operate and high-performance thermal imaging cameras that offer accurate temperature measurements at safe distances. They have a wide range of temperature measurements to satisfy a variety of thermograph applications. They are widely used in electricity and industry applications.

Principales Características

◆ Excellent thermal image and high accuracy temperature measurement

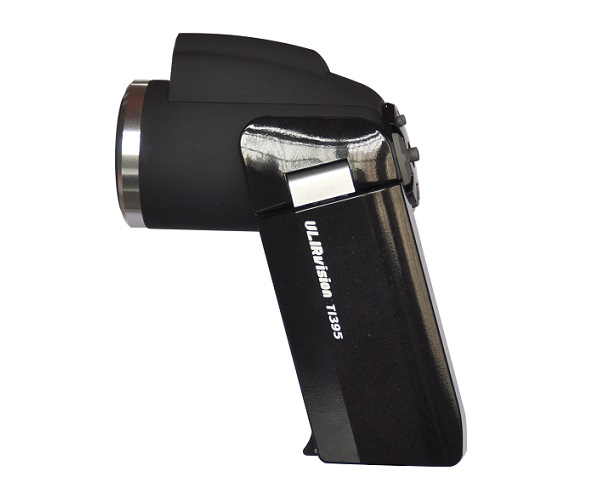

◆ 3.2”,270°rotatable and foldable LCD
◆ Multi-mode for temp. measurement, max./min./avg temp, auto tracking, isotherms analysis
◆ Tiny size, light weight 400g
◆ Multi-lens for option
◆ Fusion and overlay of the thermal image & visible image

Detector Data
Type	Uncooled FPA
IR resolution	384×288
Pixel pitch	17μm
Spectral range	7.5～14μm
NETD/Sensitivity	70mK
Lens
FOV/Minimum imaging distance	24°×18°/30cm
IFOV	1.2mrad
Focus	Auto/Motor

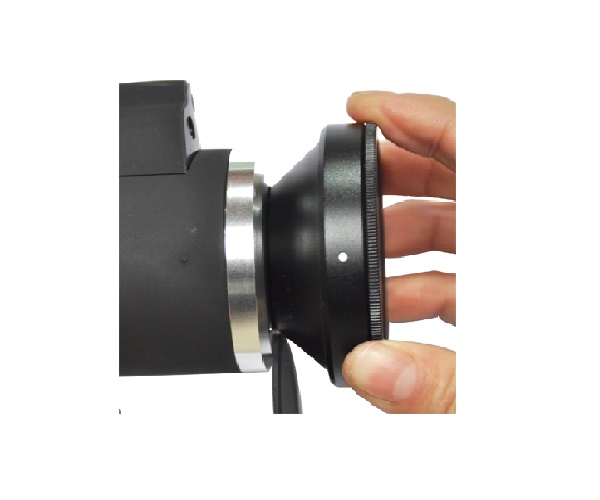

Lens(Optional)	45°×34°/15cm、12°×9°/1m
Image Performance
Display	3.2”,270° tiltable LCD,800×480 pixels
Visual camera	3.0 mega pixel
Frequency	50Hz/60Hz
Zoom	1X～8X continuous
Color palettes	12 palettes(including iron, rainbow, white hot and black hot etc.)
Contrast/brightness	Auto/Manual
Measurement
Temperature range	-20℃～+100℃、-20℃～+600℃
Measurement accuracy	±2℃/±2%(reading)
Spotmeter	4 adjustable spots
Line profile	Vertical/Horizontal
Area	3 adjustable boxes with max./min./avg temperature value
Isotherms analysis	Capture high/low temperature/interval
Alarm	Voice, color
Measurement correction	Auto/Manual
Emissivity correction	Adjustable from 0.01 to 1.0 or selected from list of materials
Background temperature correction	Auto
Atmospheric transmissivity correction	Auto
Setting function	Date/time, temperature unit ℃/℉/K, language
Languages	10 languages(English, French, Italian, German, Spanish, Portuguese, Russian, Korean, Japanese, Simplified Chinese & Traditional Chinese)
Image Storage
Storage type	Built-in flash card, up to >500 images
Storage type	8G SD card, up to >8000 images
Storage mode	Auto/Manual store image in frame
Signal frame infrared image format	JPEG, with 14-Bit radiometric image
Signal frame visible light image format	JPEG or stored with thermal image
Voice annotation	40s voice record, stored with per image via built-in microphone
Periodic image storage	User defined, 7s at least
Laser Point
Grade/Type	Class 2,1mW/635nmRed
Interfaces
Power interface	Yes
SD card slot	Yes
Video output	CVBS
Audio output	Yes
USB	USE2.0, radiometric images、measurement data and voice are transferred to PC
Tripod	1/4” -20
Power System
Battery type	Lithium battery
Battery operation time	3h continuous
External power	DC: 5V±5%
Charging system	Intelligent charger or in camera
Power saving	Yes
Environment Parameters
Operating temperature range	-20℃～+50℃
Storage temperature range	-40℃～+70℃
Humidity	≤95%(Non-condense)
Vibration	2G(IEC60068-2-6)
Shock	25G(IEC60068-2-29)
Encapsulation	IP54(IEC60529)
Physical Data
Size	128mm×62mm×154mm
Weight	≤0.4kg(with battery and standard lens)
Packing
Standard	Thermal imaging camera with standard IR lens, 2 Li-ion batteries, battery charger, adapter, USB cable, SD card, card reader, software CD, warranty card, calibration certificate
Option	Laptop, SLR camera
Please note that product specifications are subject to change without notice. To acquire more accurate information, please feel free to contact us.
