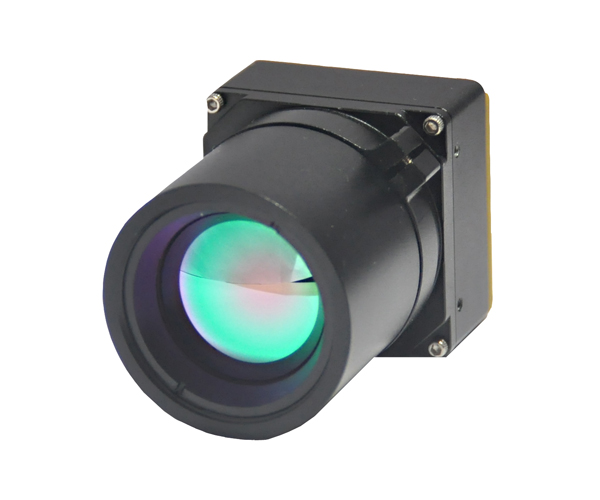

Núcleo de imagen térmica de TC390

Número de producto: TC390 384 x 288 píxeles

Categoria del producto: Núcleos de cámaras termográficas - Obturación de menos de núcleo

Descargar PDF Enviar esta página Envía tu mensaje

+86 (0)571 8720 9887 +86 (0)571 8512 5358 overseas@ulirvision.com evaxaiohz

TC390|TC690 are high level shutterless thermal imaging camera cores which can be used for various applications such as UAV&Robot integration, defense&surveillance system integration, thermal night vision and so on.

Principales Características

◆ Compact design, 38mmx38mm size, weight 55g
◆ Energy-saving design, lowest power consumption (less than 0.65W)
◆ Shutterless and IVE(Intelligent View Enhancement) technologies
◆ Isolated metal frame for radiating
◆ Digital zoom up to 4X

Detector Data
Material	aSi
IR resolution	384×288
Pixel pitch	17μm
Spectral range	7.5~14μm
NETD/Sensitivity	60mK
Lens Data
Lens(Optional)	9mm/13mm/19mm/25mm/35mm/50mm/75mm athermal lenses, various motorized lenses
Image Performance
NUC	Shutterless technology
Image enhancement	IVE image enhancement algorithm
Frequency	50Hz/60Hz
Zoom	2x、4x
Polarity/LUT mode	Black hot/White hot
Startup time	3s
Image gain	Auto/Manual
Cross cursor	ON/OFF
Interface
Primary electrical connector	40pin
Control port	RS232
Analog video output	BNC(75Ω); CCIR/PAL
Digital video output	16-Bit original data, 8-Bit BT656(customizable)
Keypad	5 button keyboard
Power System
Working voltage	DC: +2.5V～+5.5V(standard: 3.7V)
Power consumption	0.65W (BT656<1.0W)
Reverse polarity protection	Yes
Over voltage protection	Yes
Environmental Parameters
Operating temperature range	-40 ℃~+60℃
Storage temperature range	-50 ℃~+70℃
Humidity	5%~95% (non-condense)
Shock	GJB150-16 2.3.1, 100g: 6msec
Vibration	GJB150-16 2.3.1, 4.3g 3 axises, 8h
Physical Data
Size	38mm×38mm×25.1mm
Weight	≤55g(without lens)
Mounting	M2×0.4
Packing
Standard	Thermal imaging core, integrated cable, user manual of CD, warranty card, calibration certificate
