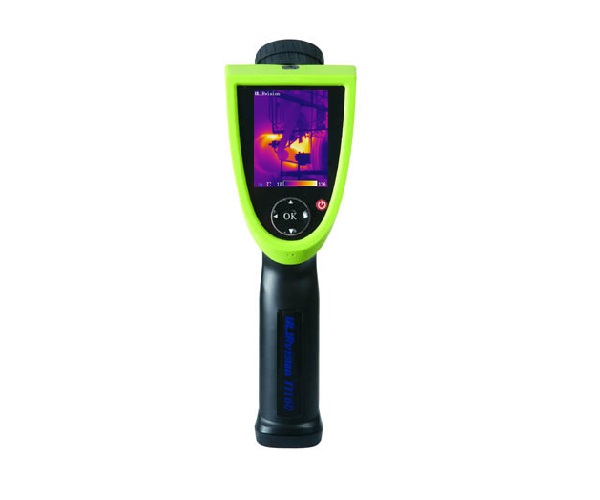

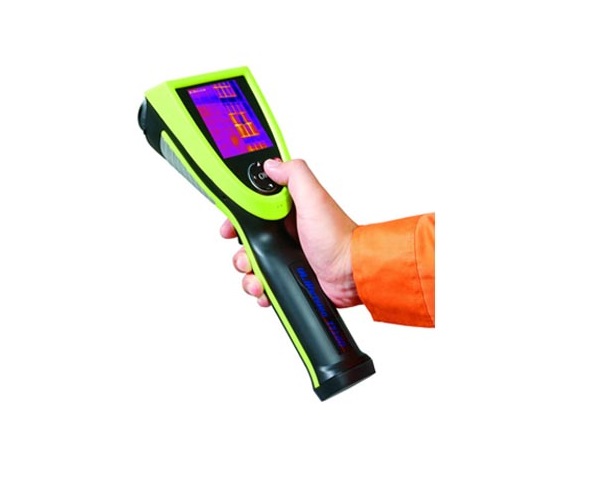

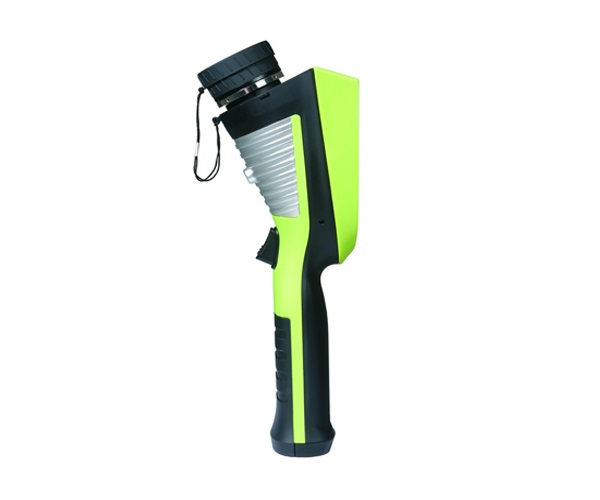

Cámara de imagen térmica de TI160

Número de producto: TI160 160 x 120 píxeles

Categoria del producto: Cámara de imagen térmica - Eléctrico y Industrial

Descargar PDF Enviar esta página Envía tu mensaje

+86 (0)571 8720 9887 +86 (0)571 8512 5358 overseas@ulirvision.com evaxaiohz

ULIRVISION TI160 & TI384 are affordable thermal cameras in the market, with 50Hz frame rate, multi functions and wide temperature measurement range. They provide ultimate inspection tools and unprecedented easy-to-use designs to fit your needs.

Principales Características

◆ 3.5” TFT LCD
◆ Built-in microphone to record 40sec voice annotation
◆ Multiple lenses for option
◆ Automatic Hot/Cold/Average spot recognition
◆ Intuitive and easy operation menu

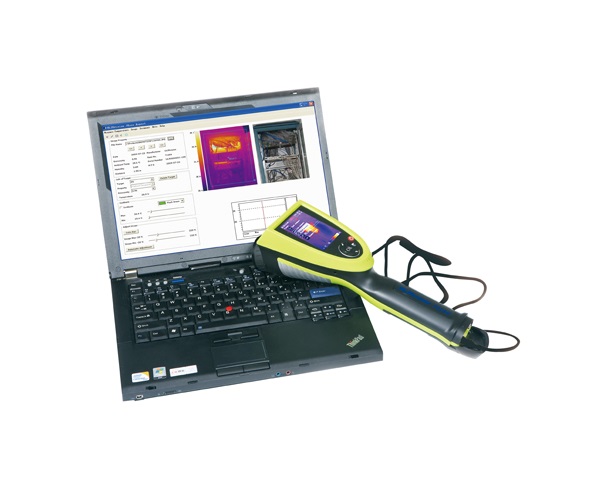

◆ Multifunction PC analysis software IRSee

Detector Data
Type	Uncooled FPA
IR resolution	160×120
Pixel pitch	25μm
Spectral range	7.5～14μm
NETD/Sensitivity	65mK
Lens
FOV/Minimum imaging distance	21°×16°/15cm
IFOV	2.3mrad
Focus	Manual
Lens(Optional)	35°×27°/5cm、4°×3°/80cm
Image Performance
Display	3.5” color LCD, 320×240 pixels
Frequency	50Hz/60Hz
Zoom	2X
Color palletes	12 palletes(including iron, rainbow, white hot and black hot etc.)
Contrast/brightness	Auto/Manual
Measurement
Temperature range	-20℃～+350℃、-20℃～+600℃(can be extended to 1200℃)
Measurement accuracy	±2℃/±2%(reading)
Spotmeter	4 adjustable spots
Line profile	Vertical/Horizontal
Area	3 adjustable boxes with max./min./avg temperature value
Isotherms analysis	Capture high/low temperature/interval
Alarm	Voice, color
Measurement correction	Auto/Manual
Emissivity correction	Adjustable from 0.01 to 1.0 or selected from list of materials
Background temperature correction	Auto
Atmospheric transmissivity correction	Auto
Setting function	Date/time, temperature unit ℃/℉/K, language
Image Storage
Storage type	Built-in flash card, 800 images
Storage mode	Store signal frame image auto/manual
Voice annotation	40s voice record, stored with per image via built-in microphone
Laser Point
Grade/Type	Class 2, 1mW/635nm Red
Interfaces
Power	Yes
Video output	CVBS
Audio output	Yes
USB	USE2.0, radiometric images、measurement data and voice are transfered to PC
Tripod	1/4” -20
Power System
Battery type	Rechargeable li-ion battery
Battery operation time	3hours
DC supply	DC: 12V ±5%
Charging system	In camera or intelligent charger
Power saving	Yes
Environment Parameters
Operation temperature range	-20℃～+50℃
Storage temperature range	-40℃～+70℃
Humidity	≤95%(Non-condense)
Vibration	2G(IEC60068-2-6)
Shock	25G(IEC60068-2-29)
Encapsulation	IP54(IEC60529)
Physical Data
Size(L×W×H)	330mm×95mm×86mm
Weight	≤0.65kg(with battery and standard lens)
Packing
Standard	Thermal imaging camera with standard IR lens, 2 Li-ion batteries, battery charger, adapter, USB cable, SD card, card reader, software CD, warranty card, certificate, calibration book
Optional accessories	Laptop, SLR camera
