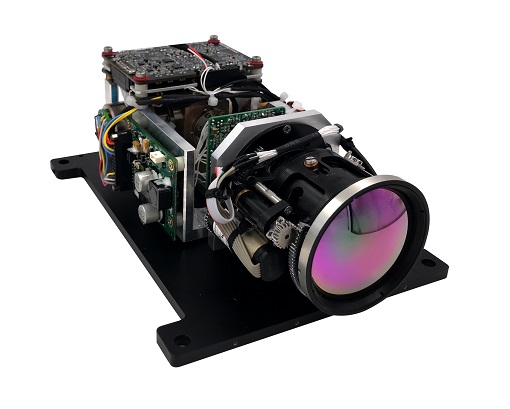

Small Mid-wave Cooled Thermal Imaging Core TC640SMW
Número de producto: TC640SMW
Categoria del producto: Núcleos de cámaras termográficas - Núcleo refrigerado
TC640SMW is a small sized mid-wave cooled thermal imaging core with SOFRADIR detectors which can be easily integrated into infrared systems that require extremely long distance detection and adaption to any harsh environment.
Principales Características◆ HgCdTe detector
◆ Continuous optical zooming, triple views, multiple lenses are optional
◆ Formidable image processing ability
◆ Multiple interfaces, easy integration
◆ Compact design, low power consumption
|
Cooler |
Stirling |
|
Detector Data |
|
| Type | MCT |
| IR resolution | 640×512 |
| Pixel pitch | 15μm |
| Spectral range | 3~5μm |
| NETD/Sensitivity | 20mK |
|
Lens Data |
|
| FOV | 2.2°×1.8°~36.5°×29.2° |
| Focal distance | 15mm~250mm continuous zoom lens |
| F/# | F4/F5.5 |
| Lens(Optional) | 50/250mm duel FOV lens, 25/80/320 triple FOV lens, 18mm~275mm continuous zoom lens, 18mm~435mm continuous zoom lens(optional: 960mm continuous zoom lens) |
|
Image Performance |
|
| Correcting | Manual correction, background correction |
| Image enhancement | Auto Image Filtering, DDE |
| Image mirroring | Vertical, horizontal |
| Frequency | 50Hz |
| Zoom | 2x、4x |
| Polarity/LUTmode | Black hot/White hot |
| Cross display | Yes |
|
Interface |
|
| Control port | RS232/RS422 |
| Analog video output | PAL |
| Digital video output | SLVDS/CameraLink |
|
Power System |
|
| Working voltage | DC: +24V～+32V |
| Power consumption | <10W@25℃(standard) |
| <20W@25℃(max) | |
| Cooling time | ≤8min |
|
Environmental Parameters |
|
| Operating temperature range | -40 ℃~+60℃ |
| Storage temperature range | -40 ℃~+70℃ |
| Humidity | 5%~95% (non-condense) |
| Shock | 20g shock pulse with 6ms half sine |
| Vibration | 1.5g 5-200Hz sine |
|
Physical Data |
|
| Size | 125mm×115mm×98mm |
| Weight | 800g |
