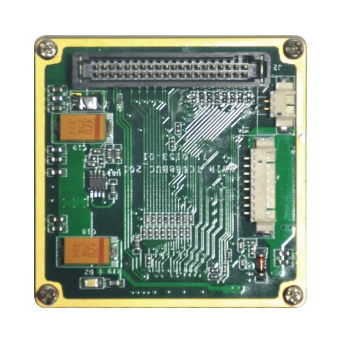

Núcleo de imagen térmica de TC388

Número de producto: TC388 384 x 288 píxeles

Categoria del producto: Núcleos de cámaras termográficas - Núcleo del obturador

Descargar PDF Enviar esta página Envía tu mensaje

+86 (0)571 8720 9887 +86 (0)571 8512 5358 overseas@ulirvision.com evaxaiohz

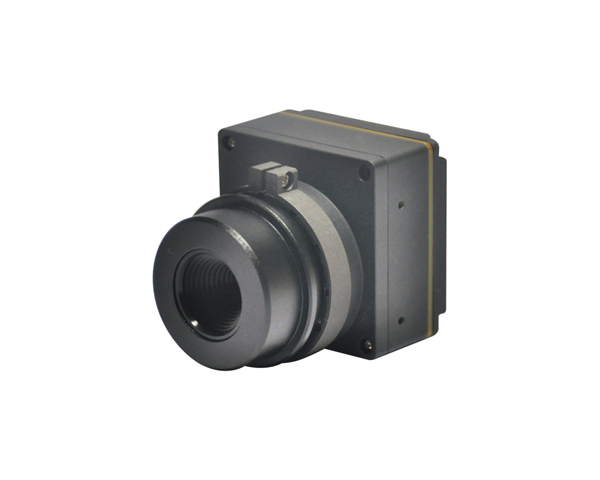

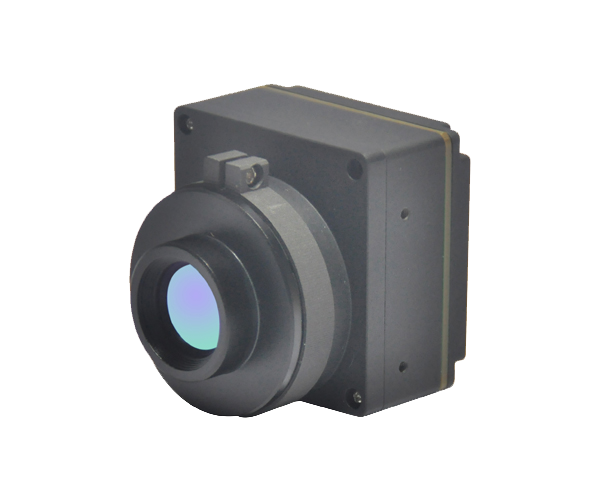

TC388|TC688 are the thermal imaging camera cores with advanced reliable shutter, it can provide stable and high quality thermal images and videos. It can be easily integrated into defense, security and surveillance systems.

Principales Características

◆ 50Hz imaging frequency, 3s for start-up
◆ Ultra-low power consumption(less than 1.2W)
◆ IVE technology
◆ Customizable interfaces
◆ PAL & NTSC switchable analog video output

Detector Data
Material	aSi
IR resolution	384×288
Pixel pitch	17μm
Spectral range	7.5~14μm
NETD/Sensitivity	65mK
Lens Data
Lens(Optional)	9mm/13mm/19mm/25mm/35mm/50mm/75mm athermal lens, 100mm/150mm motorized lens, dual FOV lens, continuous zoom lens(optional)
Image Performance
Image enhancement	IVE image enhancement algorithm
Frequency	50Hz
Zoom	2x、4x
Polarity/LUT mode	Black hot/White hot
Startup time	3s
Image gain	Auto/Manual
Focus	Motor
Cross cursor	ON/OFF
Image frozen	Yes
Interface
Primary Electrical Connector	40pin
Control port	RS232
Analog video output	BNC(75Ω); CCIR/PAL
Digital video output	16-Bit original data, 8-Bit BT656(customizable)
Keypad	4 button keyboard
Power System
Working voltage	DC: +4V～+5.5V(Standard: 5V)
Power consumption	1.5W
Reverse polarity protection	Yes
Over voltage protection	Yes
Environmental Parameters
Operating temperature range	-40 ℃~+60℃
Storage temperature range	-50 ℃~+70℃
Humidity	5%~95% (non-condense)
Shock	GJB150-16 2.3.1, 100g: 6msec
Vibration	GJB150-16 2.3.1, 4.3g 3axises, 8h
Physical Data
Size	44.5mm×44.5mm×39.5mm
Weight	≤77g(without lens)
Mounting	M2×0.4, 1/4”-20
Packing

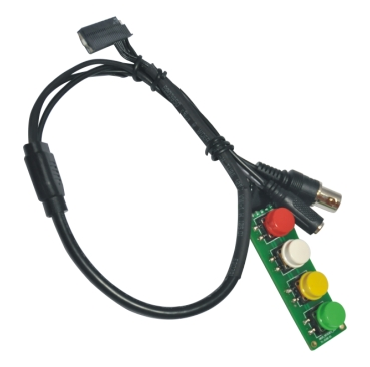

Standard	Thermal imaging core, integrated cable, user manual of CD, warranty card, calibration certificate
